DIAMOND

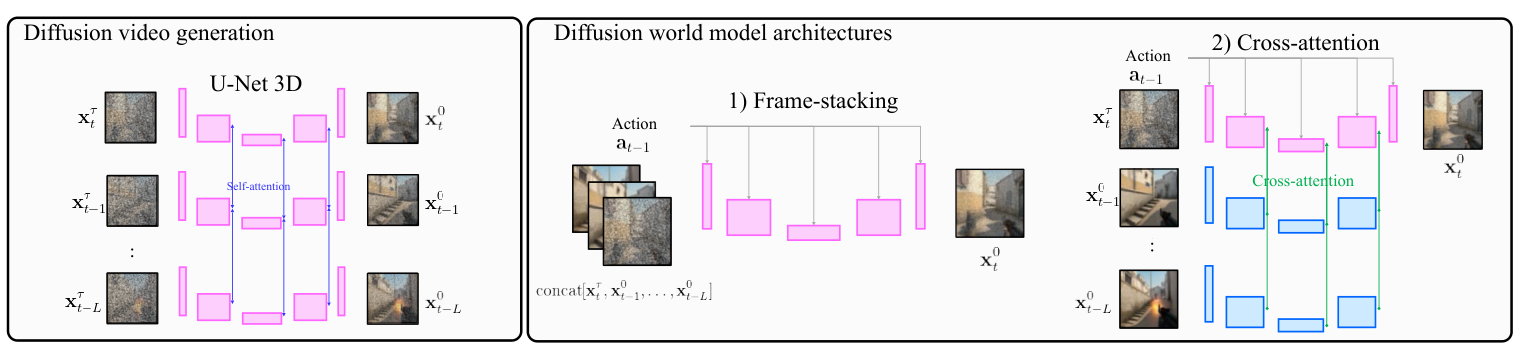

Method overview: a 3D U-Net diffusion world model that conditions on actions by frame-stacking or cross-attention.

Local Atari and CS:GO diffusion world models with shared inference components.

Edit this pageGitHubMarkdown

DIAMOND predicts game frames from recent observations and actions. WorldFoundry supports the released Atari agents and CS:GO denoiser plus spatial upsampler, reusing the same UNet blocks and EDM sampler.

Method overview: a 3D U-Net diffusion world model that conditions on actions by frame-stacking or cross-attention.
Method overview: a 3D U-Net diffusion world model that conditions on actions by frame-stacking or cross-attention.

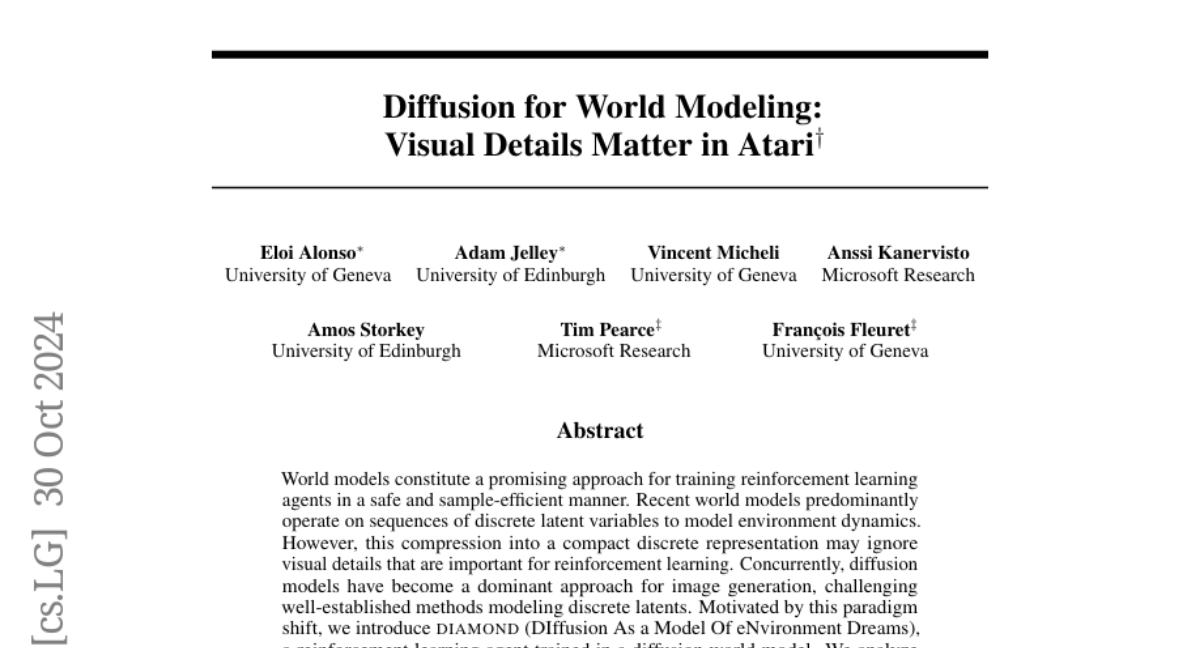

Paper · Project · Source

Run locally

Stage the relevant files from eloialonso/diamond. Runtime downloads are disabled. Atari requires its game checkpoint, the two atari_100k/config files, the packaged runtime config and an installed Atari environment/ROM. CS:GO requires csgo/model/csgo.pt, csgo/config/agent/csgo.yaml, and a released spawn directory containing low_res.npy, full_res.npy, and act.npy.

from worldfoundry.pipelines.world_model.pipeline_runtime_manifest import (
    DIAMONDPipeline, DIAMONDCsgoPipeline,
)

atari = DIAMONDPipeline.from_pretrained(
    pretrained=True, pretrained_game="Pong",
    pretrained_dir="/path/to/eloialonso--diamond", device="cuda",
)
atari(execute=True, headless_steps=100, num_steps_initial_collect=200,
      fps=15, output_path="pong.mp4")

csgo = DIAMONDCsgoPipeline.from_pretrained(
    pretrained_dir="/path/to/eloialonso--diamond", device="cuda",
)
csgo(execute=True, spawn_id=0, action="forward", headless_steps=24,
     sampler="higher_quality", seed=42, fps=16, output_path="csgo.mp4")

DIAMONDPipeline.from_pretrained(variant="csgo", ...) provides the same CS:GO runtime. The diamond-csgo binding selects DIAMONDCsgoPipeline directly. prompt, image and video are not required: Atari collects real observations for initialization; CS:GO starts from the supplied spawn history.

CS:GO named actions are idle, forward, backward, left, right, jump, turn-left, and turn-right. Alternatively, pass actions_path to a JSON or NPY array of shape [headless_steps, 51] in the official multi-hot layout: 11 keyboard bits, two click bits, 23 mouse-X bins, and 15 mouse-Y bins. Exactly one bin on each mouse axis must be active. An explicit action file takes precedence over the named action. spawn_dir overrides spawn_id.

The official higher_quality preset uses three denoising steps and ten upsampling steps per frame; fast uses one of each. Both write H.264 at the requested playback FPS. A rollout of N steps produces N+1 frames including the initial observation. Atari's horizon-50 and terminal resets can restart the context inside the video. CS:GO produces a continuous finite rollout.

Validation scope

All 26 released Atari checkpoints completed local H100 inference with strict loading, finite pre-clamp outputs, complete video decoding and visual inspection. Following the shared sampler refactor, 52 Euler/Heun comparisons across those checkpoints matched the previous implementation bitwise. A separate matched-context Pong test confirmed opposite paddle responses.

CS:GO higher_quality forward/backward rollouts from spawn 0, 24 steps each, matched the official implementation's low-resolution and upsampled tensors bitwise; pre-clamp outputs were finite. The fast preset also matched both branches bitwise on two six-step rollouts. These short checks do not establish long-horizon physics, reward accuracy, or game success. Attribution is centralized in THIRD-PARTY-NOTICES.
