CameraCtrl

Method overview: a camera encoder injects trajectory features into a pretrained video diffusion backbone.

CameraCtrl from The Chinese University of Hong Kong / Shanghai AI Laboratory: world and video; Verified.

Edit this pageGitHubMarkdown

CameraCtrl pioneered plug-and-play camera control for text-to-video diffusion: it trains a camera encoder over Plücker embeddings so trajectories can steer generation without retraining the base model. In this catalog both integration and runner are verified — the in-tree synthesis backend follows the official trajectory text-to-video demo contract in the unified environment profile.

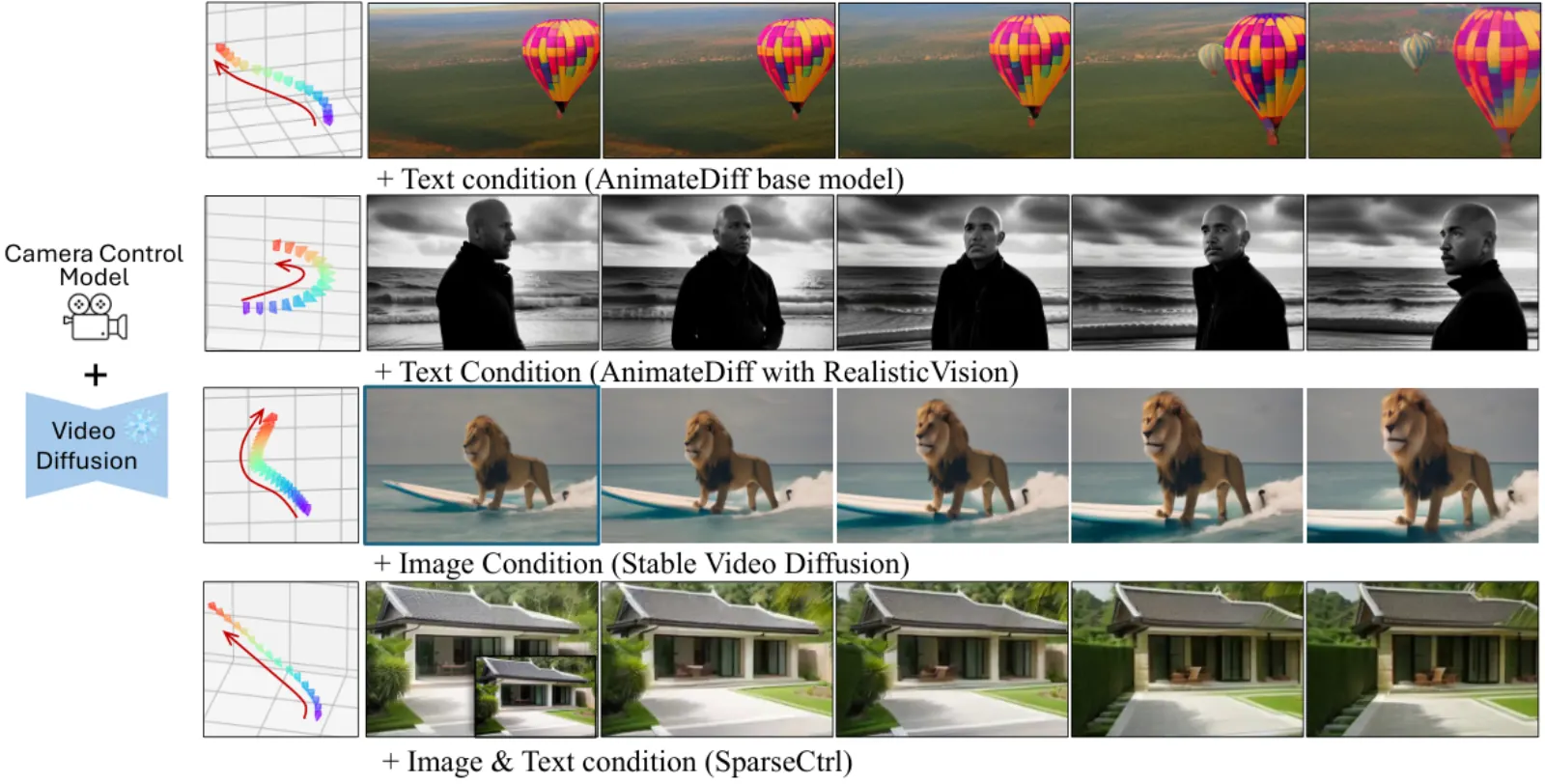

Official paper teaser: CameraCtrl steers camera trajectories for general and personalized text-to-video.
Official paper teaser: CameraCtrl steers camera trajectories for general and personalized text-to-video.

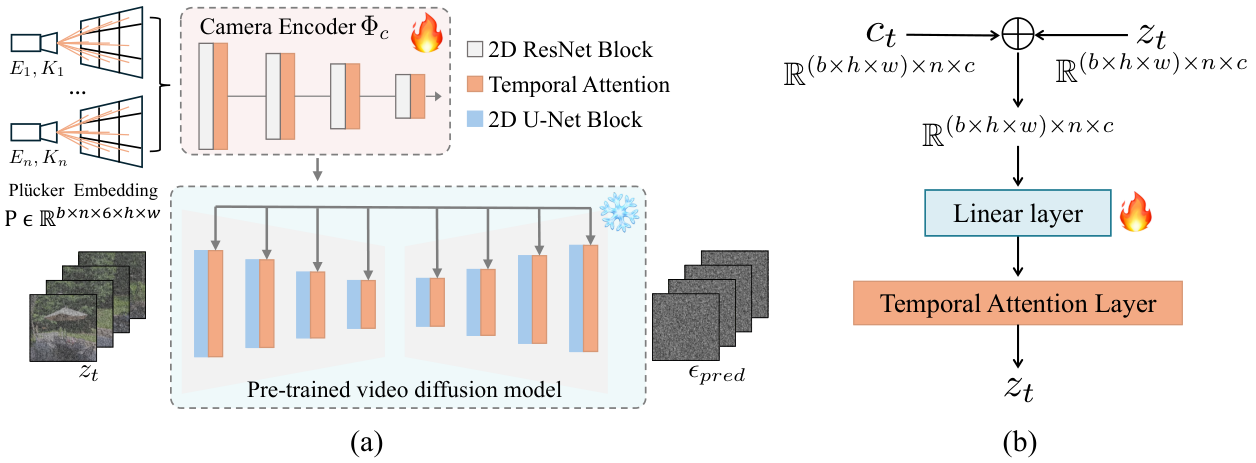

Method overview: a camera encoder injects trajectory features into a pretrained video diffusion backbone.
Method overview: a camera encoder injects trajectory features into a pretrained video diffusion backbone.

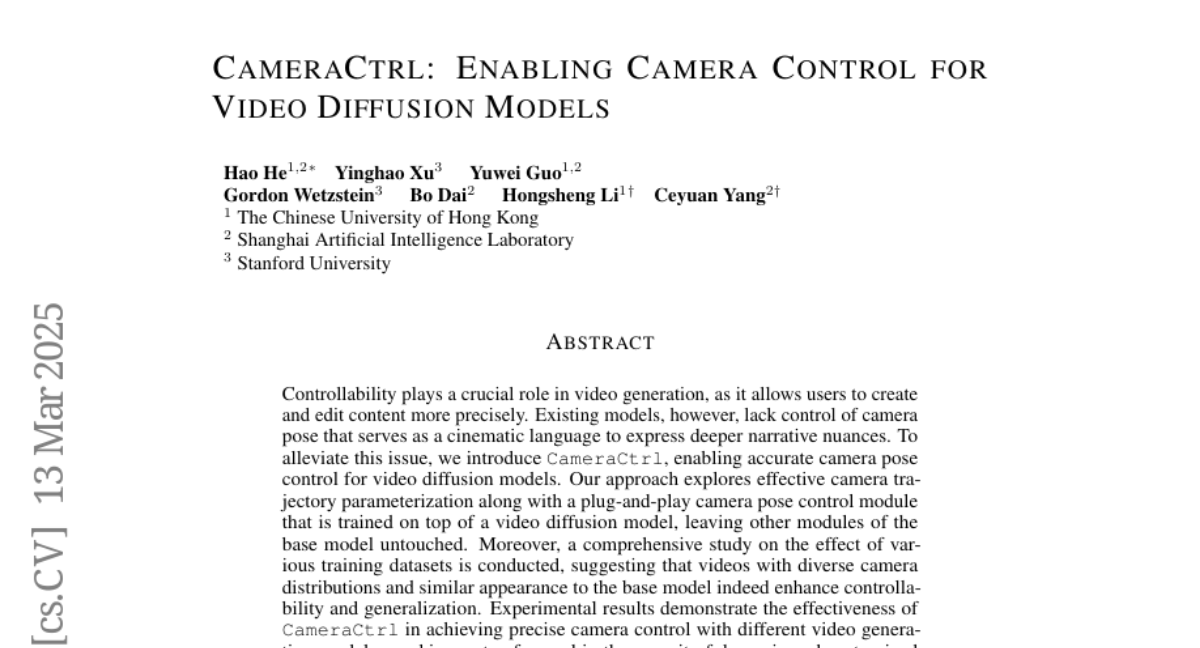

The recorded paper is arXiv 2404.02101.

Project page: hehao13.github.io/projects-CameraCtrl. Code: hehao13/CameraCtrl.

The official paper is on arXiv 2404.02101. Project: hehao13.github.io/projects-CameraCtrl. Code: hehao13/CameraCtrl. Weights: hehao13/CameraCtrl. License: MIT. Publisher: CUHK / Shanghai AI Laboratory.

This is not AC3D (CogVideoX ControlNet) and not ATI (Wan2.1 point tracks).

Build your run

Pipeline
CameraCtrlPipelineworldfoundry.pipelines.component_pipelines
TaskTrajectory Video trajectory-video
Environmentworldfoundry-unified-cu128
DeviceCUDA 11.3
Runnerworldfoundry.pipeline
Loadingfrom_pretrained
Invocationnative_or_standard_invocation
worldfoundry-eval run \
  cameractrl \
  --pipeline.task-profile trajectory-video \
  --json

What it is for

cameractrl is the recorded camera-control route. Start here to follow a catalog camera path.

Per the publication (arXiv 2404.02101), camera poses are encoded as Plücker embeddings and injected through a trainable camera encoder attached to a frozen video diffusion base (AnimateDiff in the official release). WorldFoundry vendors the runtime under synthesis/visual_generation/cameractrl/cameractrl_runtime; checkpoints stay in the normal hfd/ckpt cache. It is published by The Chinese University of Hong Kong / Shanghai AI Laboratory.

Catalog tasks include world, video, camera control, and world model. Documented outputs include video.

Recorded evaluation entry points include CameraBench (The standard camera-trajectory adherence evaluation).

Runtime contract

Optional prompt, trajectory_file, frames, fps, and height; artifacts cameractrl.mp4.

CLI task profiles: trajectory-video. WorldFoundry binds CameraCtrlPipeline.

Family status: Verified.

Recorded trajectory-video defaults: frames=16, fps=8, height=256, width=384, guidance_scale=14.0, seed=42.

The runner follows the official demo trajectory contract — supply a camera trajectory file and a text prompt.

Running in WorldFoundry

Launch worldfoundry-eval run cameractrl --pipeline.task-profile trajectory-video to follow the camera path. The command builder above switches --pipeline.task-profile among recorded tasks and still emits worldfoundry-eval run.

It runs in the unified environment worldfoundry-unified-cu128 (Python 3.11, CUDA 11.3).

Recorded weight repositories include hehao13/CameraCtrl. Prepare the environment and check local assets with bash scripts/inference/prepare_model_infer.sh cameractrl. Add --download to fetch missing public checkpoints.

Status: Verified.
