MotionCtrl

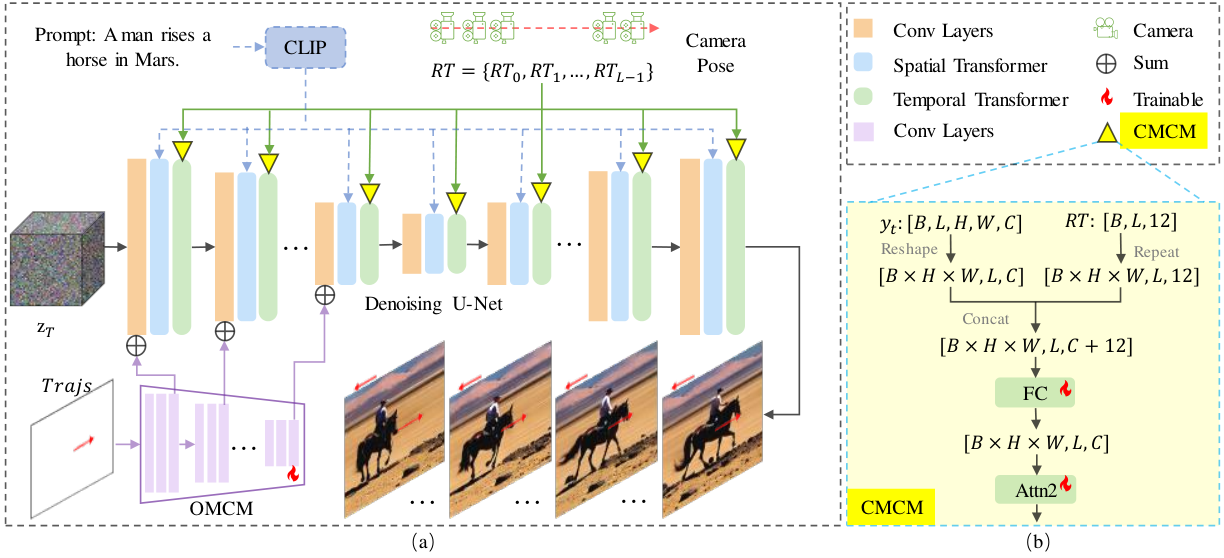

Method overview: Figure 2. MotionCtrl Framework . MotionCtrl extends the Denoising U-Net structure of LVDM with a Camera Motion Control Module (CMCM) and an Object Motion Control Module (OMCM). As illustrated in (b), the CMCM.

MotionCtrl from Tencent (ARC Lab); Verified.

Edit this pageGitHubMarkdown

MotionCtrl is a unified, flexible motion controller for video generation: it controls camera motion and object motion independently in one model (SIGGRAPH 2024). In this catalog the runner is verified — the camera-motion demo runs through the Workspace infer path with the staged MotionCtrl checkpoint and in-tree camera-pose fixture.

Official paper teaser: Figure 1. Control Results of MotionCtrl . MotionCtrl is capable of controlling both camera motion and object motion in videos produced by a video generation model. It can also simultaneously control both types of.
Official paper teaser: Figure 1. Control Results of MotionCtrl . MotionCtrl is capable of controlling both camera motion and object motion in videos produced by a video generation model. It can also simultaneously control both types of.
Method overview: Figure 2. MotionCtrl Framework . MotionCtrl extends the Denoising U-Net structure of LVDM with a Camera Motion Control Module (CMCM) and an Object Motion Control Module (OMCM). As illustrated in (b), the CMCM.
Method overview: Figure 2. MotionCtrl Framework . MotionCtrl extends the Denoising U-Net structure of LVDM with a Camera Motion Control Module (CMCM) and an Object Motion Control Module (OMCM). As illustrated in (b), the CMCM.

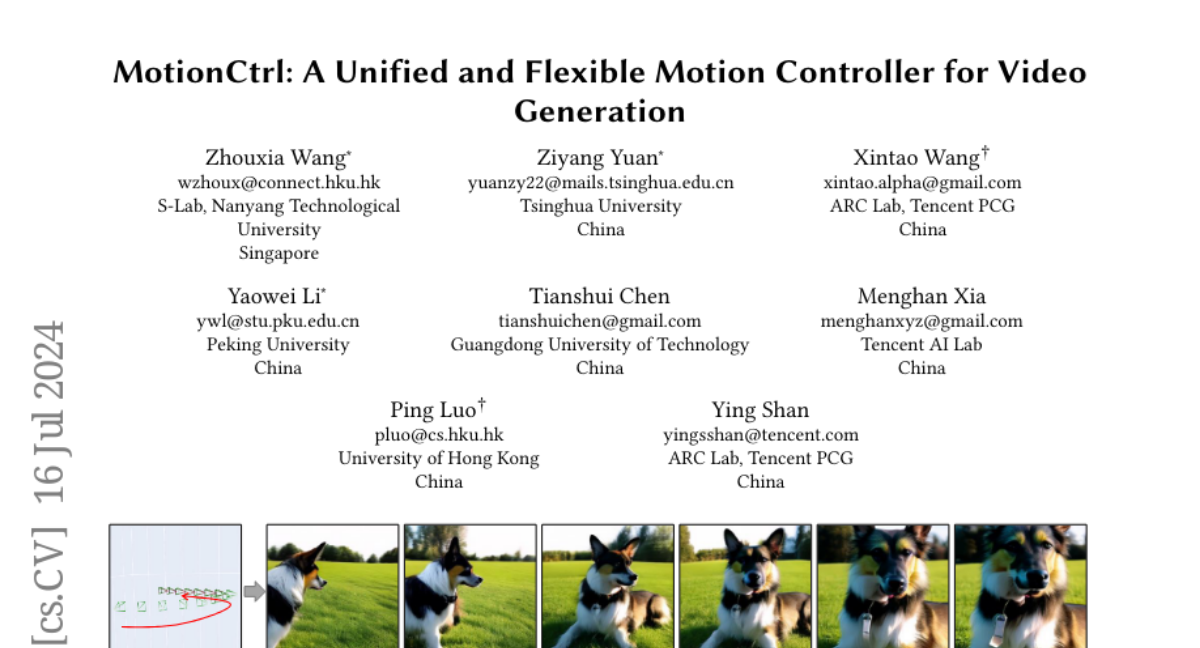

The recorded paper is arXiv 2312.03641.

Project page: wanquanf.github.io/MotionCtrl. Code: TencentARC/MotionCtrl.

Build your run

Pipeline
MotionCtrlPipelineworldfoundry.pipelines.component_pipelines
TaskInteractive Video interactive-video
Environmentworldfoundry-unified-cu128
DeviceCUDA 12.8
Runnerworldfoundry.pipeline
Loadingfrom_pretrained
Invocationnative_or_standard_invocation
worldfoundry-eval run \
  motionctrl \
  --pipeline.task-profile interactive-video \
  --json

What it is for

motionctrl is the recorded interactive world line. Start here when the job is stepping a world with actions.

Per the publication, a Camera Motion Control Module conditions on camera pose sequences and an Object Motion Control Module on trajectories, attached to an LVDM-family video base. WorldFoundry vendors the LVDM stack, control modules, sampler, default config, and motion fixtures under synthesis/visual_generation/motionctrl/motionctrl_runtime and loads them in-process. It is published by Tencent (ARC Lab).

Catalog tasks include interactive-video.

Recorded evaluation entry points include CameraBench (Camera-motion control adherence).

Runtime contract

Optional prompt, input_path, interactions, frames, and fps; artifacts motionctrl.mp4.

CLI task profiles: interactive-video. WorldFoundry binds MotionCtrlPipeline.

Family status: Verified.

The default camera/object motion fixture parameters are recorded in the runtime profile — start there. The upstream CLI is provenance only; benchmark scoring remains separate.

Runtime code is vendored in-tree; checkpoints remain external assets under the normal hfd/ckpt cache.

The upstream CLI is retained as provenance only; the WorldFoundry runtime loads the vendored architecture in-process and consumes local MotionCtrl checkpoint and condition assets.

Running in WorldFoundry

The catalog launch is worldfoundry-eval run motionctrl --pipeline.task-profile interactive-video. The command builder above switches --pipeline.task-profile among recorded tasks and still emits worldfoundry-eval run.

It runs in the unified environment worldfoundry-unified-cu128 (Python 3.11, CUDA 12.8).

Recorded weight repositories include TencentARC/MotionCtrl and TencentARC/MotionCtrl_SVD. Prepare the environment and check local assets with bash scripts/inference/prepare_model_infer.sh motionctrl. Add --download to fetch missing public checkpoints.

Status: Verified.
