RoboFlamingo

Method overview: RoboFlamingo’s architecture from the paper.

OpenFlamingo plus an LSTM action head; WorldFoundry GPU-validated predict needs three staged checkpoints.

Edit this pageGitHubMarkdown

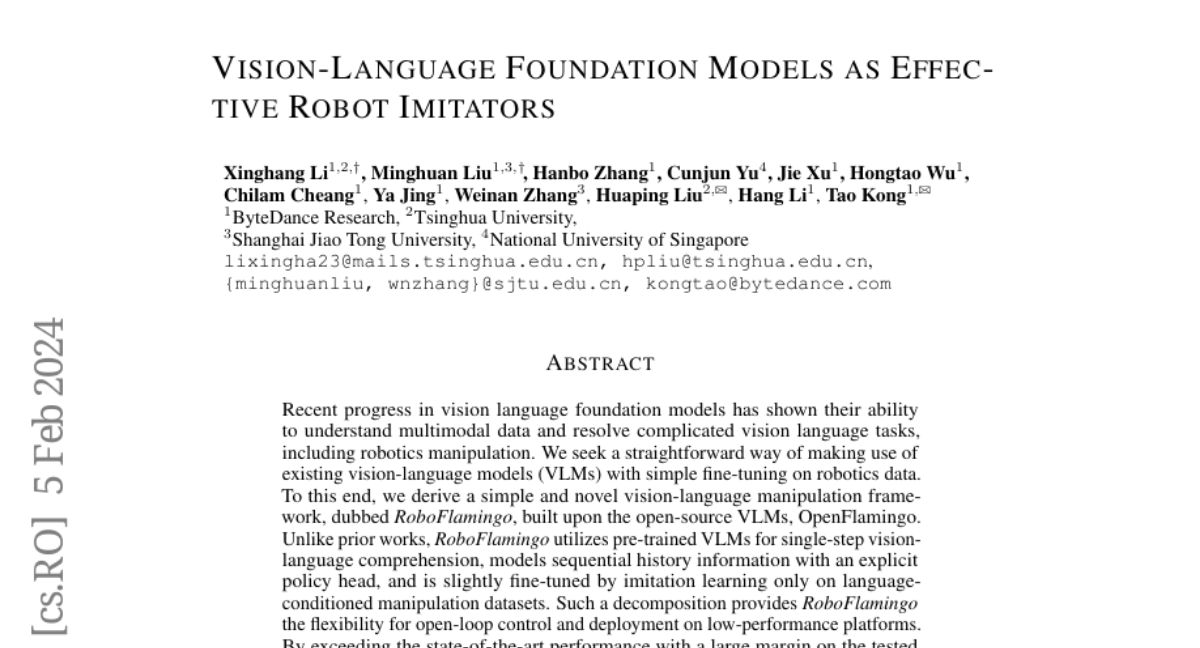

RoboFlamingo turns OpenFlamingo into a language-conditioned robot policy: the VLM encodes a camera frame with a task instruction, and a recurrent head emits continuous controls (typically 7-DoF pose plus gripper). The official paper is Vision-Language Foundation Models as Effective Robot Imitators (arXiv 2311.01378). The project page is roboflamingo.github.io. The GitHub tree is RoboFlamingo/RoboFlamingo.

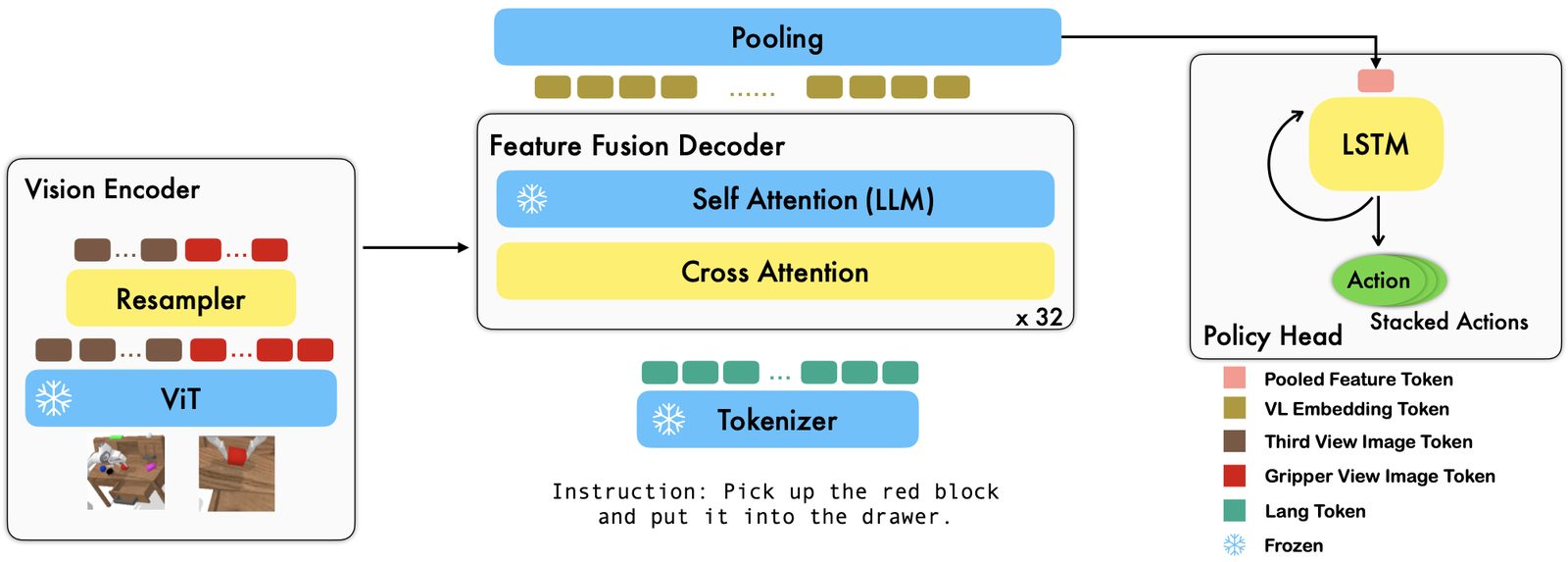

Method overview: RoboFlamingo’s architecture from the paper.
Method overview: RoboFlamingo’s architecture from the paper.

WorldFoundry vendors the architecture and inference source under worldfoundry/synthesis/action_generation/roboflamingo. There is a single catalog card — no extra variants. The public pipeline passed CUDA action_trace validation with three staged stacks: the released CALVIN policy, the OpenFlamingo VLM, and the MPT language backbone. Keep this model on embodied action maps, not video-generation scorecards. Alias robo-flamingo resolves here.

Build your run

Pipeline
RoboFlamingoPipelineworldfoundry.pipelines.component_pipelines
TaskInteractive Video interactive-video
Environmentworldfoundry-unified-cu128
DevicePrepare-only
Runnerworldfoundry.pipeline
Loadingfrom_pretrained
Invocationnative_or_standard_invocation
worldfoundry-eval run \
  roboflamingo \
  --pipeline.task-profile interactive-video \
  --json

What it is for

Language-conditioned manipulation on a CALVIN-style long-horizon suite is the intended route. Required inputs are image, instruction, prompt, and video. RoboFlamingoPipeline writes roboflamingo_action_trace.json.

Use this card when you need a GPU-ready OpenFlamingo policy with explicit backbone staging — not a chunking or diffusion action head.

Runtime contract

In-tree architecture defaults:

  • Vision: ViT-L-14 (OpenCLIP), language: MPT-1B (mpt_dolly_3b in config)
  • window_size 12, n_obs_steps 2, fusion post
  • Policy head: LSTM (decoder_type / head_type both lstm)
  • Gripper camera on, proprioception off (use_state=false), fp32

Checkpoint directories — all must already exist under ${WORLDFOUNDRY_HFD_ROOT}:

  • robovlms/RoboFlamingo → robovlms--RoboFlamingo (released CALVIN policy)
  • openflamingo/OpenFlamingo-3B-vitl-mpt1b-langinstruct → openflamingo--OpenFlamingo-3B-vitl-mpt1b-langinstruct
  • anas-awadalla/mpt-1b-redpajama-200b-dolly → anas-awadalla--mpt-1b-redpajama-200b-dolly

The vision encoder file is also declared at ${WORLDFOUNDRY_CKPT_DIR}/open_clip/ViT-L-14.pt. Full official CALVIN eval still needs the CALVIN assets themselves.

Running in WorldFoundry

The environment profile is worldfoundry-unified-cu128. The recorded env YAML is Python 3.8 with a prepare-only CUDA tag; the runner still completed a CUDA action_trace with those three checkpoints staged. After staging:

worldfoundry-eval run roboflamingo

No license is recorded in this repository. Confirm RoboFlamingo / OpenFlamingo / MPT terms before production use.
